Log Formats¶

This document provides a reference for all the different logging formats Traffic Server supports. Rather than just reading about those formats, you may also want to try our online event log builder for an interactive way of building and understanding log formats.

Binary or ASCII?¶

You can configure Traffic Server to create event log files in either of the following:

ASCII: These files are human-readable and can be processed using standard, off-the-shelf log analysis tools. However, Traffic Server must perform additional processing to create the files in ASCII, which mildly impacts system overhead. ASCII files also tend to be larger than the equivalent binary files. By default, ASCII log files have a .log filename extension.
Binary: These files generate lower system overhead and generally occupy less space on the disk than ASCII files (depending on the type of information being logged). However, you must use a converter application before you can read or analyze binary files via standard tools. By default, binary log files use a .blog filename extension.

While binary log files typically require less disk space, there are exceptions.

For example, the value 0 (zero) requires only one byte to store in ASCII, but requires four bytes when stored as a binary integer. Conversely, if you define a custom format that logs IP addresses, then a binary log file would only require four bytes of storage per 32-bit address. However, the same IP address stored in dot notation would require around 15 characters (bytes) in an ASCII log file.

It is wise to consider the type of data that will be logged before you select ASCII or binary for your log files, if your decision is being driven by storage space concerns. For example, you might try logging to both formats simultaneously for a representative period of time and compare the storage requirements of the two logs to determine whether one or the other provides any measurable savings.

Defining Log Objects¶

To perform any logging at all on your Traffic Server nodes, you must have at least one LogObject defined in logs_xml.config. These definitions configure what logs will be created, the format they will use (covered in the sections Standard Formats and Custom Formats), any filters which may be applied to events before logging them, and when or how the logs will be rolled.

Log Filters¶

LogFilter objects, configured in logs_xml.config allow you to create filters, which may be applied to LogObject definitions, limiting the types of entries which will be included in the log output. This may be useful if your Traffic Server nodes receive many events which you have no need to log or analyze.

Standard Formats¶

The standard log formats include Squid, Netscape Common, Netscape extended, and Netscape Extended-2. The standard log file formats can be analyzed with a wide variety of off-the-shelf log-analysis packages. You should use one of the standard event log formats unless you need information that these formats do not provide.

These formats may be used by enabling the :ts:cv:`proxy.config.log.custom_logs_enabled` setting in records.config and adding appropriate entries to logs_xml.config.

Squid¶

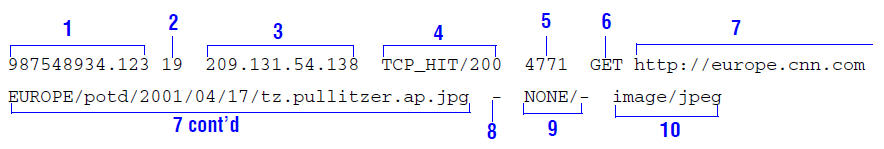

The following figure shows a sample log entry in a Squid log file.

Sample log entry in squid.log

Field	Symbol	Description
1	cqtq	The client request timestamp in Squid format. The time of the client request in seconds since January 1, 1970 UTC (with millisecond resolution).
2	ttms	The time Traffic Server spent processing the client request. The number of milliseconds between the time the client established the connection with Traffic Server and the time Traffic Server sent the last byte of the response back to the client.
3	chi	The IP address of the client’s host machine.
4	crc/pssc	The cache result code; how the cache responded to the request: `HIT`, `MISS`, and so on. Cache result codes are described in Cache Result Codes. The proxy response status code (HTTP response status code from Traffic Server to client).
5	psql	The length of the Traffic Server response to the client in bytes, including headers and content.
6	cqhm	The client request method: `GET`, `POST`, and so on.
7	cauc	The client request canonical URL; blanks and other characters that might not be parsed by log analysis tools are replaced by escape sequences. The escape sequence is a percentage sign followed by the ASCII code number of the replaced character in hex.
8	caun	The username of the authenticated client. A hyphen (`-`) means that no authentication was required.
9	phr/pqsn	The proxy hierarchy route. The route Traffic Server used to retrieve the object.
10	psct	The proxy response content type. The object content type taken from the Traffic Server response header.

Netscape Common¶

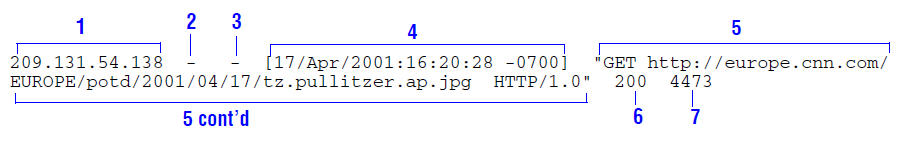

The following figure shows a sample log entry in a Netscape Common log file.

Sample log entry in common.log

Field	Symbol	Description
1	chi	The IP address of the client’s host machine.
2	–	This hyphen (`-`) is always present in Netscape log entries.
3	caun	The authenticated client username. A hyphen (`-`) means no authentication was required.
4	cqtd	The date and time of the client request, enclosed in brackets.
5	cqtx	The request line, enclosed in quotes.
6	pssc	The proxy response status code (HTTP reply code).
7	pscl	The length of the Traffic Server response to the client in bytes.

Netscape Extended¶

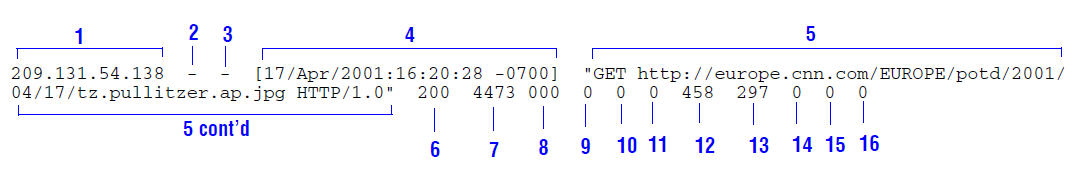

The following figure shows a sample log entry in a Netscape Extended log file.

Sample log entry in extended.log

In addition to field 1-7 from the Netscape Common log format above, the Extended format also adds the following fields:

Field	Symbol	Description
8	sssc	The origin server response status code.
9	sshl	The server response transfer length; the body length in the origin server response to Traffic Server, in bytes.
10	cqbl	The client request transfer length; the body length in the client request to Traffic Server, in bytes.
11	pqbl	The proxy request transfer length; the body length in the Traffic Server request to the origin server.
12	cqhl	The client request header length; the header length in the client request to Traffic Server.
13	pshl	The proxy response header length; the header length in the Traffic Server response to the client.
14	pqhl	The proxy request header length; the header length in Traffic Server request to the origin server.
15	sshl	The server response header length; the header length in the origin server response to Traffic Server.
16	tts	The time Traffic Server spent processing the client request; the number of seconds between the time that the client established the connection with Traffic Server and the time that Traffic Server sent the last byte of the response back to the client.

Netscape Extended2¶

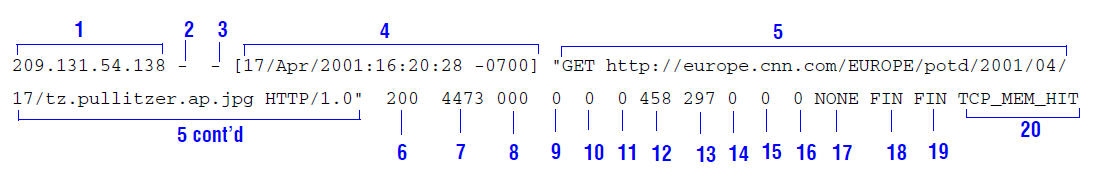

The following figure shows a sample log entry in a Netscape Extended2 log file.

Sample log entry in extended2.log

In addition to field 1-16 from the log formats above, the Extended2 format also adds the following fields:

Field	Symbol	Description
17	phr	The proxy hierarchy route; the route Traffic Server used to retrieve the object.
18	cfsc	The client finish status code: `FIN` if the client request completed successfully or `INTR` if the client request was interrupted.
19	pfsc	The proxy finish status code: `FIN` if the Traffic Server request to the origin server completed successfully or `INTR` if the request was interrupted.
20	crc	The cache result code; how the Traffic Server cache responded to the request: `HIT`, `MISS`, and so on. Cache result codes are listed in Cache Result Codes.

Custom Formats¶

Defining a Format¶

Custom logging formats in Traffic Server are defined by editing logs_xml.config and adding new LogFormat entries for each format you wish to define. The syntax is fairly simple: every LogFormat element should contain at least two child elements (additional elements are used for features such as log summarization and are covered elsewhere):

A <Name> which contains an arbitrary string (using only the allowed characters: [a-z0-9]) naming your custom format.
A <Format> which defines the fields that will populate each entry in the custom logs, as well as the order in which they appear.

A very simple example format, which contains only the timestamp of when the event began and the canonical URL of the request, and named myformat would be written as follows:

<LogFormat>
  <Name = "myformat"/>
  <Format = "%<cqtq> %<cauc>"/>
</LogFormat>

You may include as many custom field codes as you wish. The full list of codes available can be found in Custom Logging Fields. You may also include any literal characters in your format. For example, if we wished to separate the timestamp and canonical URL in our customer format above with a slash instead of a space, or even a slash surrounded by spaces, we could do so by just adding the desired characters to the format string:

%<cqtq> / %<cauc>

You may define as many custom formats as you wish. To apply changes to custom formats, you will need to run the command traffic_line -x after saving your changes to logs_xml.config.

Custom Logging Fields¶

The following list describes Traffic Server custom logging fields.

{HTTP header field name}cqh: Logs the information in the requested field of the client request HTTP header. For example, %<{Accept-Language}cqh> logs the Accept-Language: field in client request headers.

注解

ecqh is the URL-encoded version of this map

{HTTP header field name}pqh: Logs the information in the requested field of the proxy request HTTP header. For example, %<{Authorization}pqh> logs the Authorization: field in proxy request headers.

注解

epqh is the URL-encoded version of this map

{HTTP header field name}psh: Logs the information in the requested field of the proxy response HTTP header. For example, %<{Retry-After}psh> logs the Retry-After: field in proxy response headers.

注解

epsh is the URL-encoded version of this map

{HTTP header field name}ssh: Logs the information in the requested field of the server response HTTP header. For example, %<{Age}ssh> logs the Age: field in server response headers.

注解

essh is the URL-encoded version of this map

{HTTP header field name}cssh: Logs the information in the requested field of the cached server response HTTP header. For example, %<{Age}cssh> logs the Age: field in the cached server response headers.

注解

ecssh is the URL-encoded version of this map

caun: The client authenticated username; result of the RFC931/ident lookup of the client username.

cfsc: The client finish status code; specifies whether the client request to Traffic Server was successfully completed (FIN) or interrupted (INTR).

chi: The IP address of the client’s host machine.

chih: The IP address of the client’s host machine in hexadecimal.

hii: This is the incoming (interface) IP address for Traffic Server, in otherwords this is the IP address the client connected to.

hiih: The the incoming (interface) IP address in hexadecimal.

chp: The port number of the client’s host machine.

cqbl: The client request transfer length; the body length in the client request to Traffic Server (in bytes).

cqhl: The client request header length; the header length in the client request to Traffic Server.

cqhm: The HTTP method in the client request to Traffic Server: GET, POST, and so on (subset of cqtx).

cqhv: The client request HTTP version.

cqpv: The client request protocol and version.

cqtd: The client request timestamp. Specifies the date of the client request in the format yyyy-mm-dd, where yyyy is the 4-digit year, mm is the 2-digit month, and dd is the 2-digit day.

cqtn: The client request timestamp; date and time of the client’s request (in the Netscape timestamp format).

cqtq: The time of the client request since January 1, 1970 UTC (epoch), with millisecond resolution.

cqts: The time of the client request since January 1, 1970 UTC (EPOCH), with second resolution.

cqtt: The client request timestamp. The time of the client request in the format hh:mm:ss, where hh is the two-digit hour in 24-hour format, mm is the two-digit minutes value, and ss is the 2-digit seconds value (for example, 16:01:19).

cqtr: The TCP reused status; indicates if this client request went through an already established connection.

cqssl: The SSL client request status indicates if this client connection is over SSL.

cqssr: The SSL session ticket reused status; indicates if this request hit the SSL session ticket and avoided a full SSL handshake.

cqssv: The SSL version used to communicate with the client.

cqssc: The cipher used by Traffic Server to communicate with the client over SSL.

cqtx

The full HTTP client request text, minus headers; for example,

GET http://www.company.com HTTP/1.0

In reverse proxy mode, Traffic Server logs the rewritten/mapped URL (according to the rules in remap.config), _not_ the pristine/unmapped URL.

cqu

The universal resource identifier (URI) of the request from client to Traffic Server (subset of cqtx ).

In reverse proxy mode, Traffic Server logs the rewritten/mapped URL (according to the rules in remap.config), _not_ the pristine/unmapped URL.

cquc

The client request canonical URL. This differs from cqu in that blanks (and other characters that might not be parsed by log analysis tools) are replaced by escape sequences. The escape sequence is a percentage sign followed by the ASCII code number in hex.

See cquuc.

cqup

The client request URL path; specifies the argument portion of the URL (everything after the host). For example, if the URL is http://www.company.com/images/x.gif, then this field displays /images/x.gif

See cquup.

cqus: The client request URL scheme.

cquuc: The client request unmapped URL canonical. This field records a URL before it is remapped (reverse proxy mode).

cquup: The client request unmapped URL path. This field records a URL path before it is remapped (reverse proxy mode).

cquuh: The client request unmapped URL host. This field records a URL’s host before it is remapped (reverse proxy mode).

cluc: The cache lookup URL, or cache key, for the client request. This URL is canonicalized as well.

crat: The Retry-After time in seconds, if specified by the origin server.

crc: The cache result code; specifies how the cache responded to the request (HIT, MISS, and so on).

chm: The cache hit-miss status, specifying which level of the cache this was served out of. This is useful for example to show whether it was a RAM cache vs disk cache hit. Future versions of the cache will support more levels, but right now it only supports RAM (HIT_RAM) vs rotational disk (HIT_DISK).

csscl: The cached response length (in bytes) from origin server to Traffic Server.

csshl: The cached header length in the origin server response to Traffic Server (in bytes).

csshv: The cached server response HTTP version (1.0, 1.1, etc.).

csssc: The cached HTTP response status code from origin server to Traffic Server.

cwr: The cache write result (-, WL_MISS, INTR`, ERR or FIN)

cwtr: The cache write transform result

fsiz: The size of the file (n bytes) as seen by the origin server.

{Milestone field name}ms: The timestamp in milliseconds of a specific milestone for this request. see TSHttpTxnMilestoneGet() for milestone names.

{Milestone field name1-Milestone field name2}msdms: The difference in milliseconds of between two milestones. see TSHttpTxnMilestoneGet() for milestone names.

pfsc: The proxy finish status code; specifies whether the Traffic Server request to the origin server was successfully completed (FIN), interrupted (INTR) or timed out (TIMEOUT).

phn: The hostname of the Traffic Server that generated the log entry in collated log files.

phi: The IP of the Traffic Server that generated the log entry in collated log files.

phr: The proxy hierarchy route; the route Traffic Server used to retrieve the object.

php: The TCP port number that Traffic Server served this request from.

piid: The plugin ID for the transaction. This is set for plugin driven transactions via TSHttpConnectWithPluginId().

pitag: The plugin tag for the transaction. This is set for plugin driven transactions via TSHttpConnectWithPluginId().

pqbl: The proxy request transfer length; the body length in Traffic Server’s request to the origin server.

pqhl: The proxy request header length; the header length in Traffic Server’s request to the origin server.

pqsi: The proxy request server IP address (0 on cache hits and parent-ip for requests to parent proxies).

pqsn: The proxy request server name; the name of the server that fulfilled the request.

pscl: The length of the Traffic Server response to the client (in bytes).

psct: The content type of the document from server response header: (for example, img/gif ).

pshl: The header length in Traffic Server‘s response to the client.

psql: The proxy response transfer length in Squid format (includes header and content length).

pssc: The HTTP response status code from Traffic Server to the client.

pqssl: Indicates whether the connection from Traffic Server to the origin was over SSL or not.

sca: The number of attempts in the transaction Traffic Server tries to connect to the origin server.

shi

The IP address resolved from the DNS name lookup of the host in the request. For hosts with multiple IP addresses, this field records the IP address resolved from that particular DNS lookup.

This can be misleading for cached documents. For example: if the first request was a cache miss and came from IP1 for server S and the second request for server S resolved to IP2 but came from the cache, then the log entry for the second request will show IP2.

shn: The hostname of the origin server.

sscl: The response length (in bytes) from origin server to Traffic Server.

sshl: The header length (in bytes) in the origin server response to Traffic Server.

sshv: The server response HTTP version (1.0, 1.1, etc.).

sssc: The HTTP response status code from origin server to Traffic Server.

stms: The time spent accessing the origin (in milliseconds); the time is measured from the time the connection with the origin is established to the time the connection is closed.

stmsh: Same as stms but in hexadecimal.

stmsf

The time Traffic Server spends accessing the origin as a fractional number of seconds. That is, the time is formated as a floating-point number, instead of an integer as in stms.

For example: if the time is 1500 milliseconds, then this field displays 1.5 while the stms field displays 1500 and the sts field displays 1.

sts: The time Traffic Server spends accessing the origin, in seconds.

sstc: The number of transactions between Traffic Server and the origin server from a single server session. A value greater than 0 indicates connection reuse.

ttms: The time Traffic Server spends processing the client request; the number of milliseconds between the time the client establishes the connection with Traffic Server and the time Traffic Server sends the last byte of the response back to the client.

ttmsh: Same as ttms but in hexadecimal.

ttmsf

The time Traffic Server spends processing the client request as a fractional number of seconds. Time is specified in millisecond resolution; however, instead of formatting the output as an integer (as with ttms), the display is formatted as a floating-point number representing a fractional number of seconds.

For example: if the time is 1500 milliseconds, then this field displays 1.5 while the ttms field displays 1500 and the tts field displays 1.

tts: The time Traffic Server spends processing the client request; the number of seconds between the time at which the client establishes the connection with Traffic Server and the time at which Traffic Server sends the last byte of the response back to the client.

Custom Field Cross-Reference¶

The following sections illustrate the correspondence between Traffic Server custom logging fields and standard logging fields for the Squid and Netscape formats.

Squid¶

The following is a list of the Squid logging fields and the corresponding logging field symbols.

Squid	Field Symbols
time	cqts
elapsed	ttms
client	chi
action/code	crc/pssc
size	psql
method	cqhm
url	cquc
ident	caun
hierarchy/from	phr/pqsn
content	psct

This is the equivalent XML configuration for the log above:

<LogFormat>
  <Name = "squid"/>
  <Format = "%<cqtq> %<ttms> %<chi> %<crc>/%<pssc> %<psql> %<cqhm> %<cquc>
             %<caun> %<phr>/%<pqsn> %<psct>"/>
</LogFormat>

Netscape Common¶

The following is a list of the Netscape Common logging fields and the corresponding Traffic Server logging field symbols.

Netscape Common	Field Symbols
host	chi
usr	caun
[time]	[cqtn]
“req”	“cqtx“
s1	pssc
c1	pscl

This is the equivalent XML configuration for the log above:

<LogFormat>
  <Name = "common"/>
  <Format = "%<chi> - %<caun> [%<cqtn>] \"%<cqtx>\" %<pssc> %<pscl>"/>
</LogFormat>

Netscape Extended¶

The following table lists the Netscape Extended logging fields and the corresponding Traffic Server logging field symbols.

Netscape Extended	Field Symbols
host	chi
usr	caun
[time]	[cqtn]
“req”	“cqtx“
s1	pssc
c1	pscl
s2	sssc
c2	sscl
b1	cqbl
b2	pqbl
h1	cqhl
h2	pshl
h3	pqhl
h4	sshl
xt	tts

This is the equivalent XML configuration for the log above:

<LogFormat>
  <Name = "extended"/>
  <Format = "%<chi> - %<caun> [%<cqtn>] \"%<cqtx>\" %<pssc> %<pscl>
     %<sssc> %<sscl> %<cqbl> %<pqbl> %<cqhl> %<pshl> %<pqhl> %<sshl> %<tts>"/>
</LogFormat>

Netscape Extended-2¶

The following is a list of the Netscape Extended-2 logging fields and the corresponding Traffic Server logging field symbols.

Netscape Extended-2	Field Symbols
`host`	`chi`
`usr`	`caun`
`[time]`	`[cqtn]`
`"req"`	`"cqtx"`
`s1`	`pssc`
`c1`	`pscl`
`s2`	`sssc`
`c2`	`sscl`
`b1`	`cqbl`
`b2`	`pqbl`
`h1`	`cqhl`
`h2`	`pshl`
`h3`	`pqhl`
`h4`	`sshl`
`xt`	`tts`
`route`	`phr`
`pfs`	`cfsc`
`ss`	`pfsc`
`crc`	`crc`

This is the equivalent XML configuration for the log above:

<LogFormat>
  <Name = "extended2"/>
  <Format = "%<chi> - %<caun> [%<cqtn>] \"%<cqtx>\" %<pssc> %<pscl>
             %<sssc> %<sscl> %<cqbl> %<pqbl> %<cqhl> %<pshl> %<pqhl> %<sshl> %<tts> %<phr> %<cfsc> %<pfsc> %<crc>"/>
</LogFormat>

Log Field Slicing¶

It is sometimes desirable to slice a log field to limit the length of a given log field’s output.

Log Field slicing can be specified as below:

%<field[start:end]>
%<{field}container[start:end]>

Omitting the slice notation defaults to the entire log field.

Slice notation only applies to a log field that is of type string and can not be applied to IPs or timestamp which are converted to string from integer.

The below slice specifiers are allowed.

[start:end]: Log field value from start through end-1
[start:]: Log field value from start through the rest of the string
[:end]: Log field value from the beginning through end-1
[:]: Default - entire Log field

Some examples below

'%<cqup>'       // the whole characters of <cqup>.
'%<cqup>[:]'    // the whole characters of <cqup>.
'%<cqup[0:30]>' // the first 30 characters of <cqup>.
'%<cqup[-10:]>' // the last 10 characters of <cqup>.
'%<cqup[:-5]>'  // everything except the last 5 characters of <cqup>.

Cache Result Codes¶

The following table describes the cache result codes in Squid and Netscape log files.

TCP_HIT: A valid copy of the requested object was in the cache and Traffic Server sent the object to the client.
TCP_MISS: The requested object was not in cache, so Traffic Server retrieved the object from the origin server (or a parent proxy) and sent it to the client.
TCP_REFRESH_HIT: The object was in the cache, but it was stale. Traffic Server made an if-modified-since request to the origin server and the origin server sent a 304 not-modified response. Traffic Server sent the cached object to the client.
TCP_REF_FAIL_HIT: The object was in the cache but was stale. Traffic Server made an if-modified-since request to the origin server but the server did not respond. Traffic Server sent the cached object to the client.
TCP_REFRESH_MISS: The object was in the cache but was stale. Traffic Server made an if-modified-since request to the origin server and the server returned a new object. Traffic Server served the new object to the client.
TCP_CLIENT_REFRESH: The client issued a request with a no-cache header. Traffic Server obtained the requested object from the origin server and sent a copy to the client. Traffic Server deleted the previous copy of the object from cache.
TCP_IMS_HIT: The client issued an if-modified-since request and the object was in cache and fresher than the IMS date, or an if-modified-since request to the origin server revealed the cached object was fresh. Traffic Server served the cached object to the client.
TCP_IMS_MISS: The client issued an if-modified-since request and the object was either not in cache or was stale in cache. Traffic Server sent an if-modified-since request to the origin server and received the new object. Traffic Server sent the updated object to the client.
TCP_SWAPFAIL: The object was in the cache but could not be accessed. The client did not receive the object.
ERR_CLIENT_ABORT: The client disconnected before the complete object was sent.
ERR_CONNECT_FAIL: Traffic Server could not reach the origin server.
ERR_DNS_FAIL: The Domain Name Server (DNS) could not resolve the origin server name, or no DNS could be reached.
ERR_INVALID_REQ: The client HTTP request was invalid. (Traffic Server forwards requests with unknown methods to the origin server.)
ERR_READ_TIMEOUT: The origin server did not respond to Traffic Server‘s request within the timeout interval.
ERR_PROXY_DENIED: Client service was denied.
ERR_UNKNOWN: The client connected, but subsequently disconnected without sending a request.
